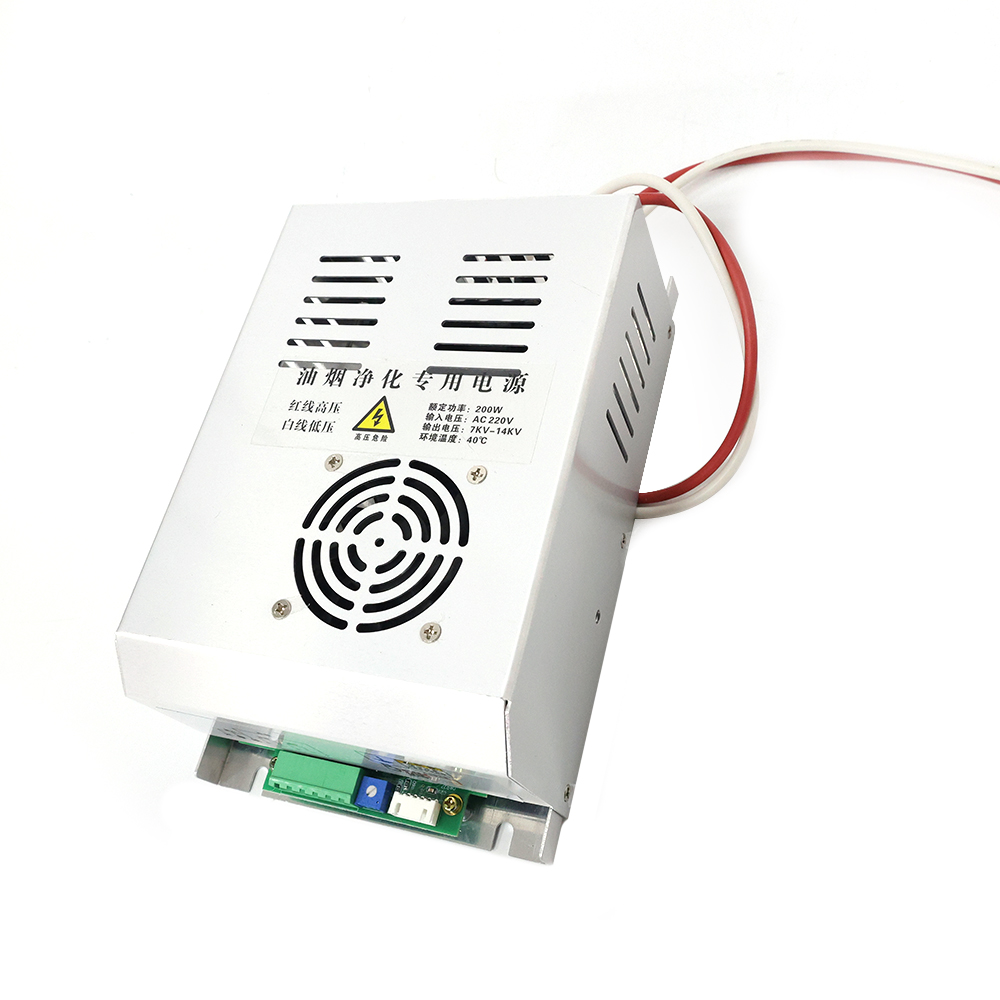

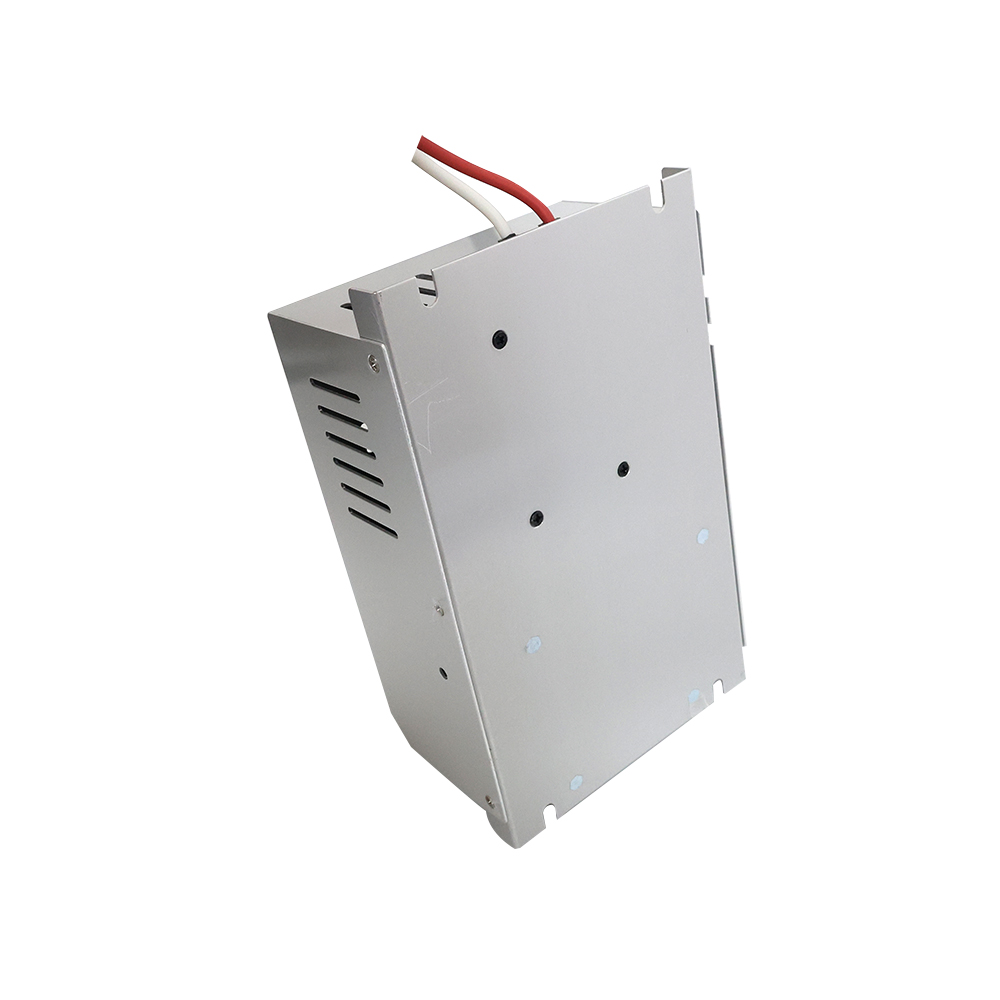

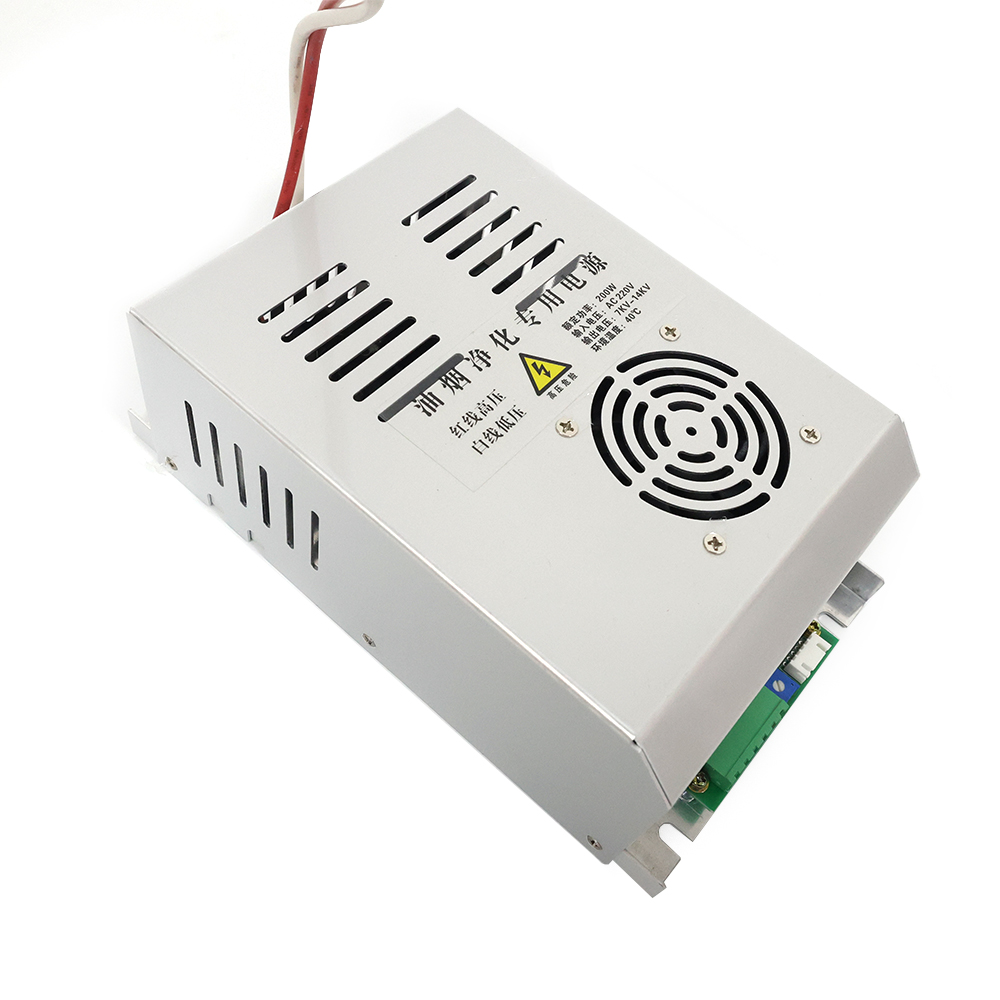

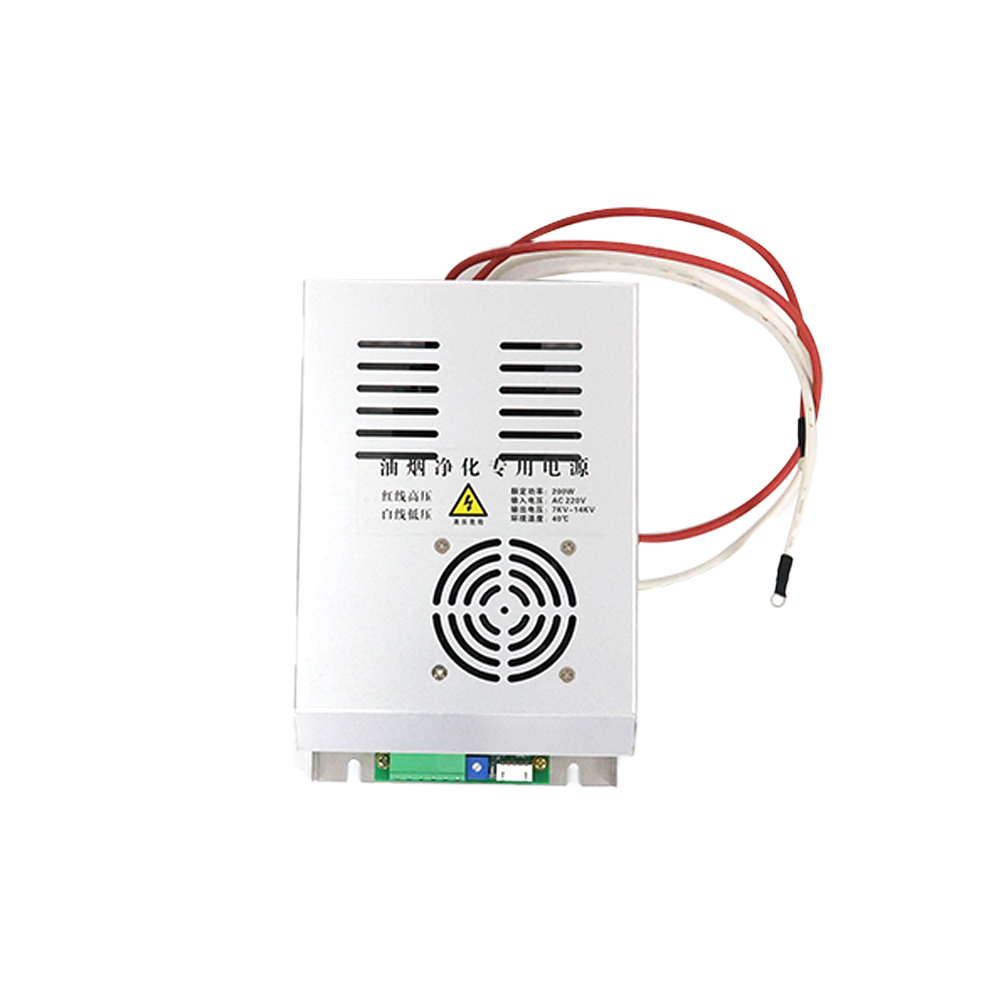

200W Constant Voltage High and Low Voltage Power Supply

200W Power Supply

Input voltage: AC100-240V

Output voltage: DC 0-16kv

Power: 200W

Special Regulated High and Low Voltage Power Supply

Model	ZTM-200W	ZTM-300W	ZTM-500W	ZTM-300W
Type	High and low voltage constant voltage power supply			High voltage power supply
Dimention	22013480	22013480	24018080	22013480
Input voltage	AC：100-240V	AC：100-240V	AC：100-240V	AC：100-240V
Output voltage	DC:0-15Kv	DC:0-15Kv	DC:0-16Kv	DC:0-15Kv
Power	200W	300W	500W	300W
Short circuit protection	✅️	✅️	✅️	✅️
Ignition protection	✅️	✅️	✅️	✅️
Pull arc protection	✅️	✅️	✅️	✅️
Overvoltage protection	✅️	✅️	✅️	✅️
Circuit breaker protection	✅️	✅️	✅️	✅️

Display screen available for matching power supply.

Advantages

* Constant voltage and constant current dual closed loop design, with different load voltages tomaintain constant, making it easier to match the electric field.

* When the power supply is unloaded, it also operates in constant voltage mode without damage to the power supply

Using resonant voltage doubling technology, the power efficiency can reach over 90%, with low lossesand low heat generation, ensuring long-term reliable operation for customers in high temperatureenvironments.

* Fully protected; There are mainly discharge protection, short circuit protection, overload protection,flashover protection (anti arce), good flame retardancy, effective protection of load insulation terminalsand greatly reducing the risk of fire, with good safety and reliability.

* Can receive timely fault reminders; The power supply is equipped with fault lights, running lights,matched with LED or 12V indicator lights.

* Optional analog ammeter can be used to accurately display the power output current. When thepower is ignited, the ammeter will not be damaged

* Double voltage circuit design, using imported components, stable power performance, and a designlifespan of up to 3-5 years.
